Simple operation everyone understands

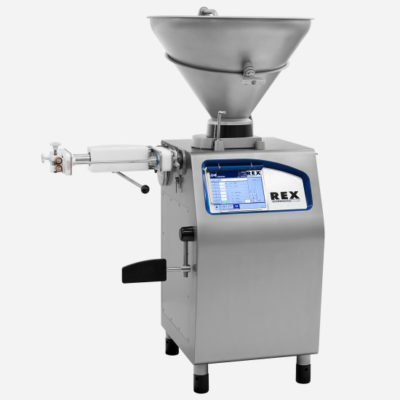

The RVF 330 is designed for small and medium enterprises with frequent changes in the product range and standard quantities. Reliability, fast and easy cleaning, minimization of residue and low energy costs are the main features of the RVF 330. The hygienic stainless steel machine body reduces cleaning time to a minimum. The rotary vane conveyor system made of wear-resistant stainless steel guarantees a long service life and the highest product quality. It ensures gentle transport of the meat emulsion and minimum air pockets in the final product. The touchscreen guarantees simple operation. The clipper socket, which is a standard feature, permits the operation of automatic clipping machines and/or additional machines. The “S” version of the RVF 327 has a servo twisting drive which supports gentle twisting of natural casings. It goes without saying that the RVF 330 can always be fitted with a rotating or fixed casing holding device to make twisting of artificial and natural casings easier. Folding hopper variants in volumes of 100 and 160 litres are available.

RVF 436 is as suitable for the smaller or medium-sized meat-processing operations as it is for larger, highly specialised companies. Its smooth surface, hygienically designed, space-saving machine housing, is self-supporting and made entirely of stainless steel.The machine’s modern design allows us to fulfil the highest standards of hygiene, reducing the daily cleaning effort. The reinforced model of the large rotary vane conveyor system guarantees highest portioning accuracy for a maximum service life. No crushing or smearing: It ensures all kind of emulsions transported gently, especially with larger pieces of meat or raw sausage applications. The rotary vane conveyor system is available with eight, 12 or 14 vanes, alternatively also with blind vanes. A simple pressure levelling piston ensures highest portioning accuracy. Thanks to the newly developed lifting device, the hopper of the RVF 400 - available in different sizes - can be filled simply and without any mess.

• 100 litre folding hopper
• 160 litre folding hopper
• 250 litre folding hopper
• 350 litre folding hopper

The impressive standard 12” touchscreen control makes the machine easy to operate, thanks to its large-sized control elements. Both the RVF 436 and the RVF 436 S are designed to be suitable for all applications, e.g. for operating clipping machines, REX hanging lines and attachments. The tried-and-tested "REX Servo drive" rounds off the innovative control concept. The optional case holding device makes it easy to twist artificial and natural casings.

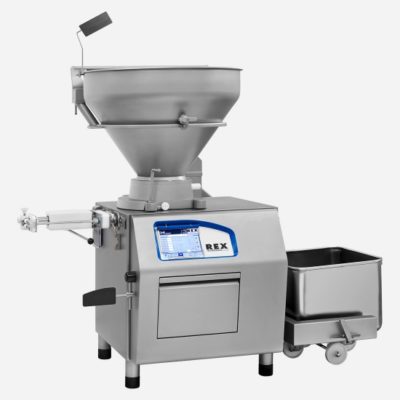

The RVF 740 is designed for medium-sized meat-processing operations. Its smooth surface, hygienically designed, space-saving machine housing is self-supporting and entirely made out of stainless steel. The reinforced model of the large rotary vane conveyor system guarantees highest portioning accuracy for a maximum service life. No crushing or smearing: It ensures all kind of emulsions transported gently, especially with larger pieces of meat or raw sausage applications. The rotary vane conveyor system is available with eight, 12 or 14 vanes, alternatively also with blind vanes. A simple pressure levelling piston ensures highest portioning accuracy. All models of the RVF 700 series can be equipped with a MC-3 in-line grinder.. RVF 740 can be delivered with a lifting/tipping device for 200-litre standard lifting trucks (optional). Two different hopper sizes can be selected according to the needs of the operation. Folding hoppers in volumes of 250 and 350 litres are available.

RVF 911 is characterised by its almost unbelievable throughput performance which makes it suitable for industrial purposes. The increased pump capacity is the optimum solution for industrial applications. It can also be incorporated in line solutions with various clipping machines and attachments. The rotary vane conveyor system, whose diameter has been further enlarged compared to the 500 and 700 series, is truly the heart of this machine and ensures highest portioning accuracy. The rotary vane conveyor system is available with 8 or 14 vanes, alternatively also with blind vanes. A simple pressure levelling piston ensures highest portioning accuracy. As an option, the RVF 911 can be supplied with a fully integrated lifting/tipping device for standard 200 or 300 litre trolleys. The large 350 litre hopper version ensures maximum loading, but also the fast and easy cleaning when changing charges. The conveyor system has been designed in such a way that during cleaning water can flow out of the feed system. The feeder screw in the hopper ensures optimum in-feed for all non-viscous or viscous products into the rotary vane conveyor system. The standard touchscreen controls make the appliance easy to operate and can be use to drive various clipping machines and attachments.The servo drive technology, used by REX for more than 25 years, has been especially strengthened for the RVF 911 in order to achieve maximum filling pressure. It goes without saying that the RVF 911 can always be fitted with a rotating or fixed casing holding device to make twisting of artificial or natural casings easy.
